Oil Expeller Oil Mill
ZY/ZX Screw Oil Expeller Screw Oil Press Oil Mill
Model ZY/ZX screw oil press is the large-sized equipment of continuous press oil machinery. High market sale rate, widely applies for full pressing of vegetable oil seeds such as canola seed, cottonseed, peanut kemel, soybean, tea seed, oil sunflower seed, etc. Change the inner parts inside pressing cage, which can be used for the oil pressing of low oil content materials such as ricebran and animal oil. And also is the major machine for twice pressing of high oil content material such as coconut.
We're here to help: Easy ways to get the answers you need.
Product Introduction
Screw Oil Expeller
Model ZY/ZX screw oil press is the large-sized equipment of continuous press and have obtained ISO9001-2000 authentication. It’s suitable for pressing cottonseed, rapeseed, tung seed, sunflower seed, groundnut seed and other high oil contained plants. Its characteristics are high capacity, low power consumption, low cost in running, the construction of the press cake is soft but not fragmentary, and the solvent is apt to infiltrate, lower oil in cake. It’s the excellent choose of press equipment for the large and medium-sized oil factory.
ZY/ZX Screw Oil Press Mill Parameters
Sinoder Brand Screw Oil Expeller in Factory

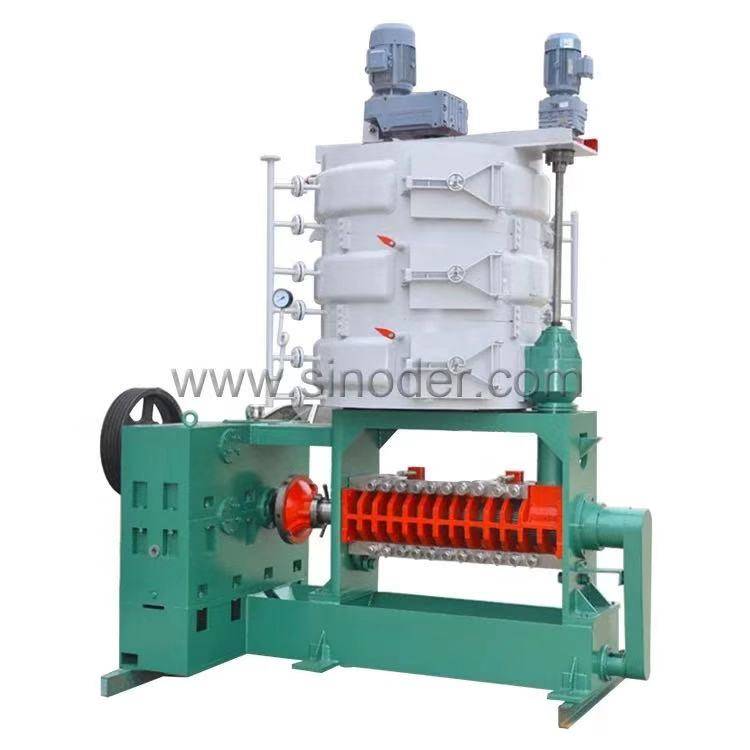

Sinoder Brand Screw Oil Expeller Machine
Model ZY/ZX screw oil press is the large-sized equipment of continuous press and have obtained ISO9001-2000 authentication. It’s suitable for pressing cottonseed, rapeseed, tung seed, sunflower seed, groundnut seed and other high oil contained plants. Its characteristics are high capacity, low power consumption, low cost in running, the construction of the press cake is soft but not fragmentary, and the solvent is apt to infiltrate, lower oil in cake. It’s the excellent choose of press equipment for the large and medium-sized oil factory.
ZY/ZX Screw Oil Press Mill Parameters
| Model | Capacity | Oil in cake | Power | Overall dimensions(L×W×H) | N.W. |
| ZY24A | 60-80 t/d | 12-18 % | 30+5.5+3.0 kw | 2900×1850×3640 mm | 5500 kg |
| ZX24A | 15-20 t/d | 7-9 % | 30+5.5+3.0 kw | 2900×1850×3640 mm | 5500 kg |
| ZY28 | 120-150 t/d | 16-20 % | 75+11+4.0 kw | 3740×1920×3843 mm | 9160 kg |
| ZX28 | 40-60 t/d | 7-9 % | 55+11+4.0 kw | 3740×1920×3843 mm | 9160 kg |
| ZY32 | 220-260 t/d | 16-20 % | 110+11+5.5 kw | 4100×2270×3850 mm | 11000 kg |
| ZX32 | 90-100 t/d | 8-10 % | 90+11+5.5 kw | 4100×2270×3850 mm | 11000 kg |
Sinoder Brand Screw Oil Expeller in Factory
Sinoder Brand Screw Oil Expeller Machine
Technical parameters
Screw Oil Press Machine
ZY/ZX Screw Oil Press Oil Mill Parameters
ZY/ZX Screw Oil Press Oil Mill Parameters
| Model | Capacity | Oil in cake | Power | Overall dimensions(L×W×H) | N.W. |
| ZY24A | 60-80 t/d | 12-18 % | 30+5.5+3.0 kw | 2900×1850×3640 mm | 5500 kg |
| ZX24A | 15-20 t/d | 7-9 % | 30+5.5+3.0 kw | 2900×1850×3640 mm | 5500 kg |
| ZY28 | 120-150 t/d | 16-20 % | 75+11+4.0 kw | 3740×1920×3843 mm | 9160 kg |
| ZX28 | 40-60 t/d | 7-9 % | 55+11+4.0 kw | 3740×1920×3843 mm | 9160 kg |
| ZY32 | 220-260 t/d | 16-20 % | 110+11+5.5 kw | 4100×2270×3850 mm | 11000 kg |
| ZX32 | 90-100 t/d | 8-10 % | 90+11+5.5 kw | 4100×2270×3850 mm | 11000 kg |
