Rotary Sieve Classifier
Rotary Sieve Classifier Suitable for granular material, the broken material classification and secondary loop grinding process, particle, powder and some cleaning and grading.
We're here to help: Easy ways to get the answers you need.
Product Introduction

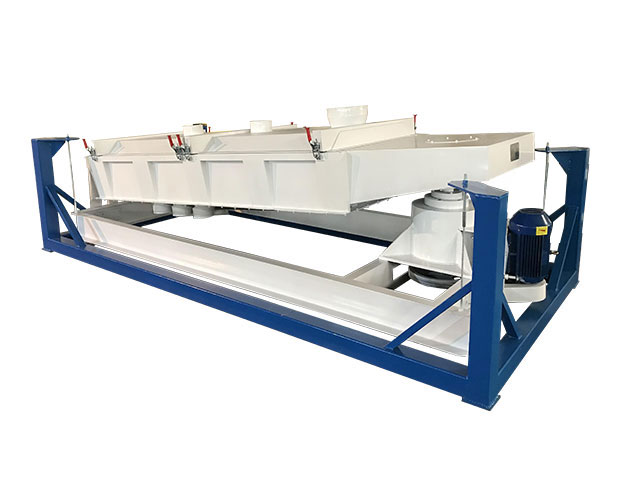

Rotary Sieve Classifier
Product features:
1、Suitable for granular material, the broken material classification and secondary loop grinding process, particle, powder and some cleaning and grading. Adopting triangle belt transmission lay particular stress on balance mechanism and elastic tail support mechanism, material in the level of rotors on the working plane rotary motion, screening of high accuracy, small vibration.
2、Without oil lubrication, to avoid the oil leakage.
3、Discharging mouth internal flow line design, don't make material deposition, avoid cross contamination.
4、Pressure screen institutions and firm, change the screen quickly.
5、According to the need to customize two layer sieve, three layer and two layer sieve sieve double feed.
Product features:
1、Suitable for granular material, the broken material classification and secondary loop grinding process, particle, powder and some cleaning and grading. Adopting triangle belt transmission lay particular stress on balance mechanism and elastic tail support mechanism, material in the level of rotors on the working plane rotary motion, screening of high accuracy, small vibration.
2、Without oil lubrication, to avoid the oil leakage.
3、Discharging mouth internal flow line design, don't make material deposition, avoid cross contamination.
4、Pressure screen institutions and firm, change the screen quickly.
5、According to the need to customize two layer sieve, three layer and two layer sieve sieve double feed.
Technical parameters
Rotary Sieve Classifier
| Type no. | Power (kw) | production （t/h） | ||
| Powder material | Granular material | |||
| 1Cseries | SFJH80×1C | 1.5 | 3-5 | 5-8 |
| SFJH110×1C | 2.2 | 6-8 | 8-10 | |
| SFJH130×1C | 4 | 9-13 | 12-16 | |
| SFJH140×1C | 5.5 | 12-16 | 14-20 | |
| SFJH150×1C | 7.5 | 14-18 | 16-22 | |
| SFJH1600×1C | 11 | 18-20 | 20-24 | |
| 2Cseries | SFJH80×2C | 1.5 | 3-5 | 5-8 |
| SFJH110×2C | 2.2 | 6-8 | 8-10 | |
| SFJH130×2C | 4 | 9-13 | 12-16 | |
| SFJH140×2C | 5.5 | 12-16 | 14-20 | |
| SFJH150×2C | 7.5 | 14-18 | 16-22 | |
| SFJH160×2C | 11 | 18-20 | 20-24 | |
| 3Cseries | SFJH80×3C | 1.5 | 3-5 | 5-8 |
| SFJH110×3C | 2.2 | 6-8 | 8-10 | |
| SFJH130×3C | 4 | 9-13 | 12-16 | |
| SFJH140×3C | 5.5 | 12-16 | 14-20 | |
| SFJH150×3C | 7.5 | 14-18 | 16-22 | |
| SFJH160×3C | 11 | 18-20 | 20-24 | |
FAQ
If you're interested in our feed pellet processing machines, please kindly tell us the following requirement:
1. What's the feed pellet production capacity do you want?
R:we can supply feed pellet mill or production line with output from 0.1-30t/h.
2. What's your feed raw material and size and feed formula content?
R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.
3. What's the final feed pellet diameter or size do you want or for what animal?
R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep？fish?horse? cow? or pig?or what purpose?
1. What's the feed pellet production capacity do you want?
R:we can supply feed pellet mill or production line with output from 0.1-30t/h.
2. What's your feed raw material and size and feed formula content?
R:Tell us feed material formulation,then we can design the suitable production line based on actual demand.
3. What's the final feed pellet diameter or size do you want or for what animal?
R:Our equipment can produce feed pellet diameter 2-8mm,for chick feed,we can produce crumb feed particle.
for chicken? cow? sheep？fish?horse? cow? or pig?or what purpose?
